LeDUX Lumière

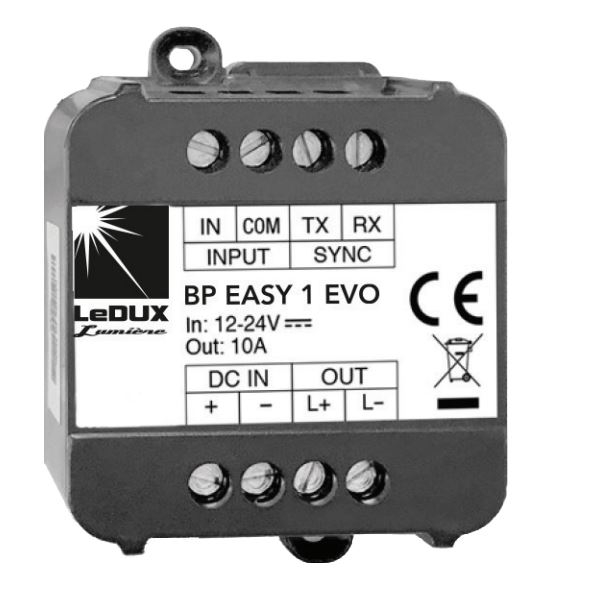

BP EASY 1 EVO
Artikelnr: 2600990010
EAN-nummer: 3701005761138
Utgången produkt
Produktinformation
Dimmiermodul för LED-tejp, 1 kanal, max 10A

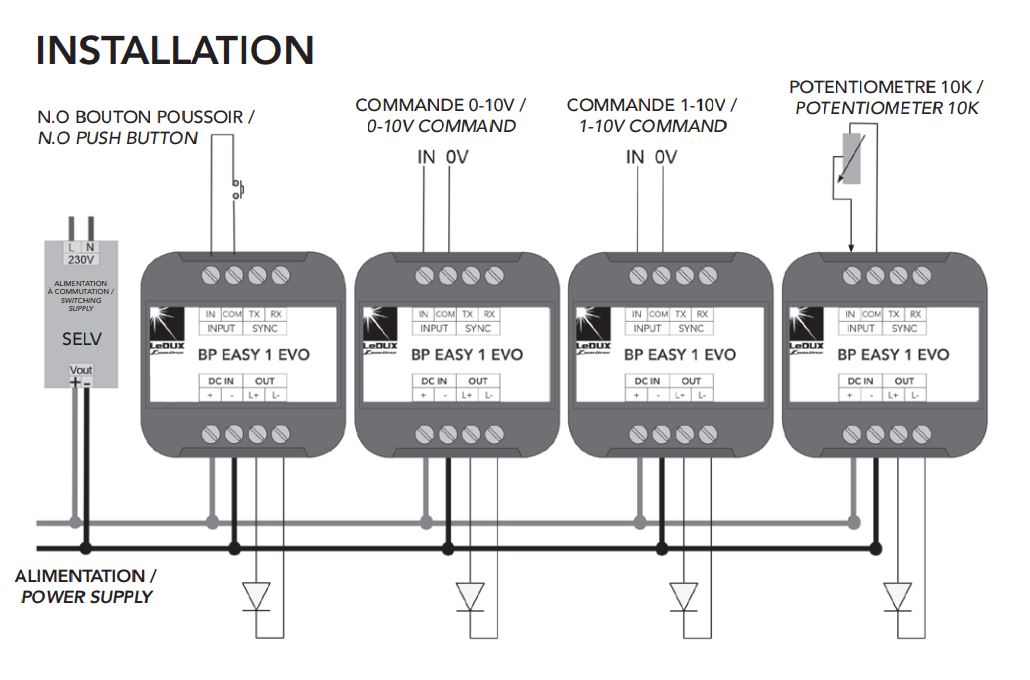

- Push Button Control. 0-10V; 1-10V;
- Switch ON / OFF.
- Soft start / Soft stop.

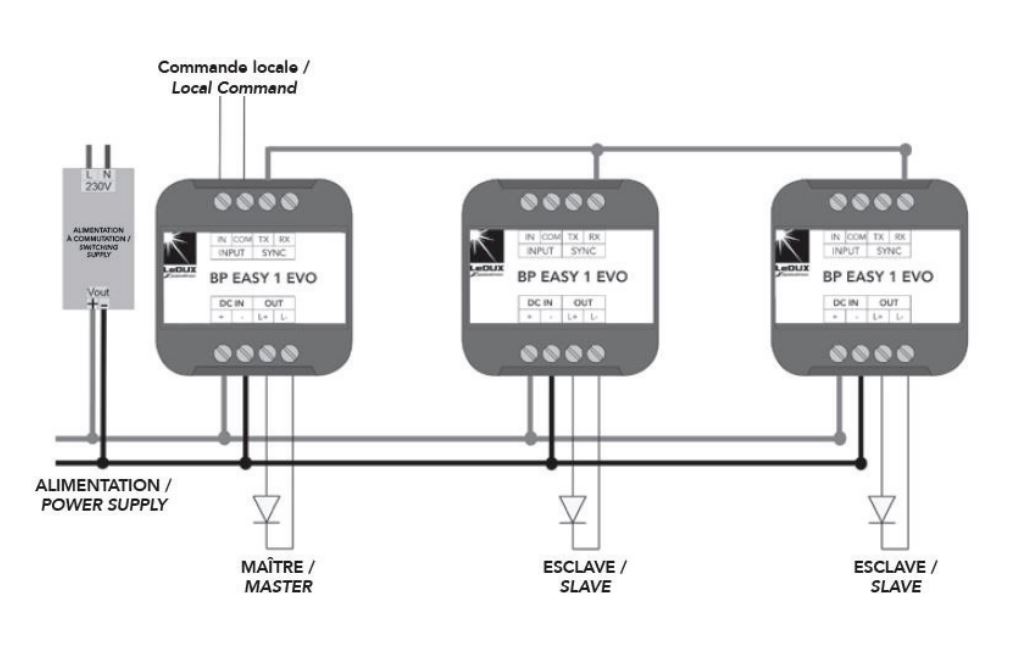

- Synchronisation Mode MASTER / SLAVE
list
Specifikation| Input Voltage | 12 - 24 Vdc |
| Dimming Frequency | 300 HZ |
| Nominal Power Max | 120W(12V) - 240W(24V) |
| Output Current | 10A |
| Dimming Protocol | BP / 0-10 / 1-10 |
| PWM Range | 0.1 - 100% |
| IP Classificiation | IP20 |
| Weight | 0,04kg |

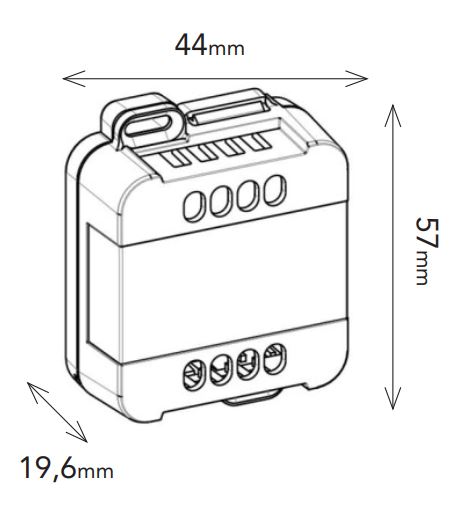

| Dimensions | 424 x 57 x 19mm |
| Working Temp. | -10°C / +40°C |
