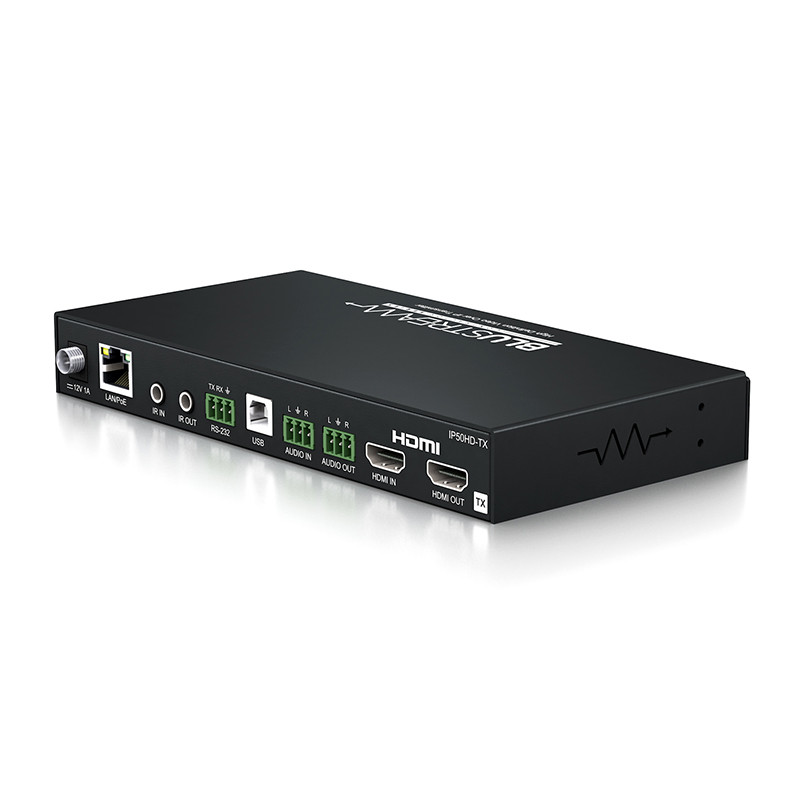

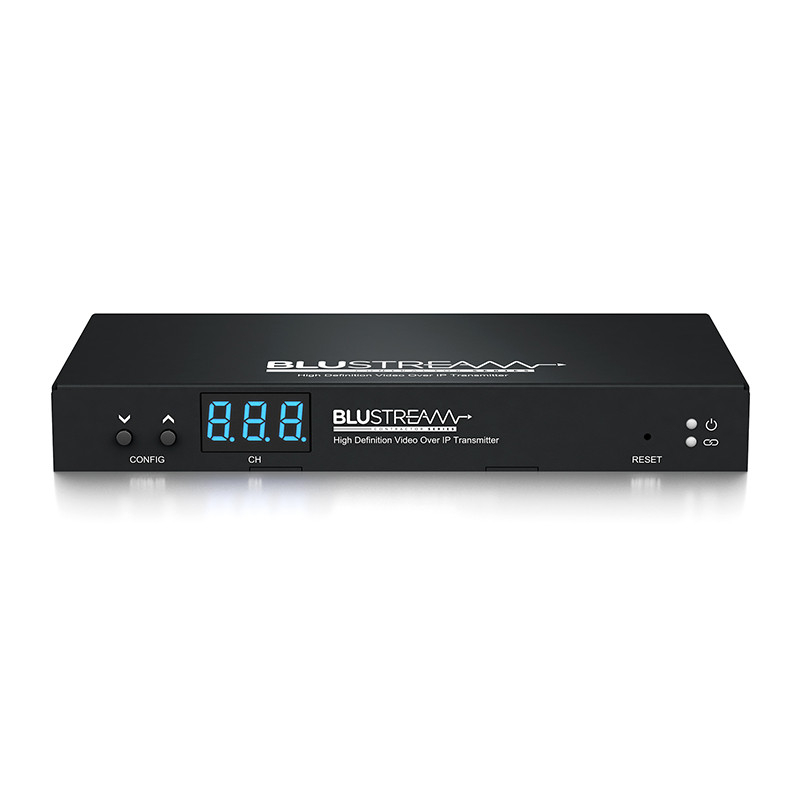

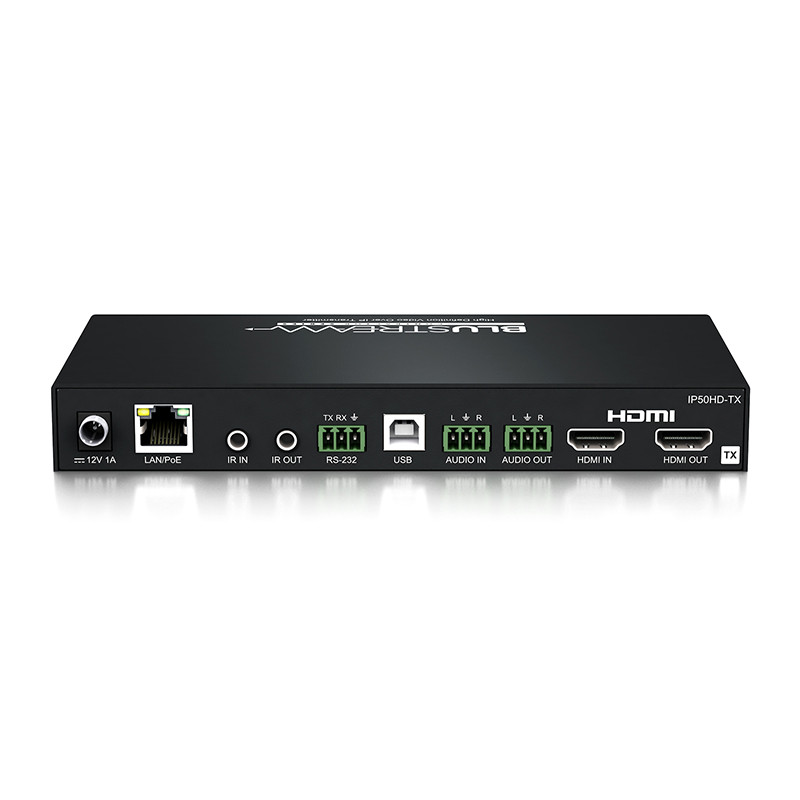

IP50HD-TX

Blustream IP50HDTX är sändaren i Blustream's "Contractor Series" inom AV över IP.
Kan även användas som point-to-point system ihop med mottagaren IP50HD-RX för att skicka HDMI signal upp till 100m öcer nätverkskabel.

"Contractor Series" är Blustreams enklare (1080p upplösning) AVOIP system för distribution av video över 100/1000Mbps nätverk.

IP50HDTX är fullproppad med bra funktioner så som HDMI Loop-Out, 2-vägs IR eller RS-232 kommunikation, USB/KVM överföring, PoE, analog audio embedding och analog audio breakout.

• Advanced HD video, control and KVM over network infrastructure
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports unicast transmission over unmanaged networks
• Supports multicast transmission for large managed networks
• Supports up to 1080p @ 60Hz
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports PCM 2.0 channel audio only
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
• PoE (Power over Ethernet) to power product from a PoE switch
• HDCP1.4 compliant with advanced EDID management
• Analogue L/R audio embedding and audio breakout (2ch PCM only)
• Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)
• Features 2 operational modes:
- Matrix distribution (requires 100Mbps network switch)
- One-to-one HDMI extender (no network switch required)

• Latency: 3 frames
• Audio input: 1 x 3-pin Phoenix connector
• Audio output: 1 x 3-pin Phoenix connector
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Host Port: 1 x USB-Type B
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack

• PoE effekt: 3.7W (typical), 4.0W (max load)
• Mått: 190mm x 95mm x 25mm

INNEHÅLL:
1 x IP50HD-TX
1 x IR Receiver
1 x IR Emitter
1 x Mounting Kit
4 x Rubber Feet
