CYP
PUV-1510-KIT
Artikelnr: 7031110385
EAN-nummer: 5060067155841
Produktinformation

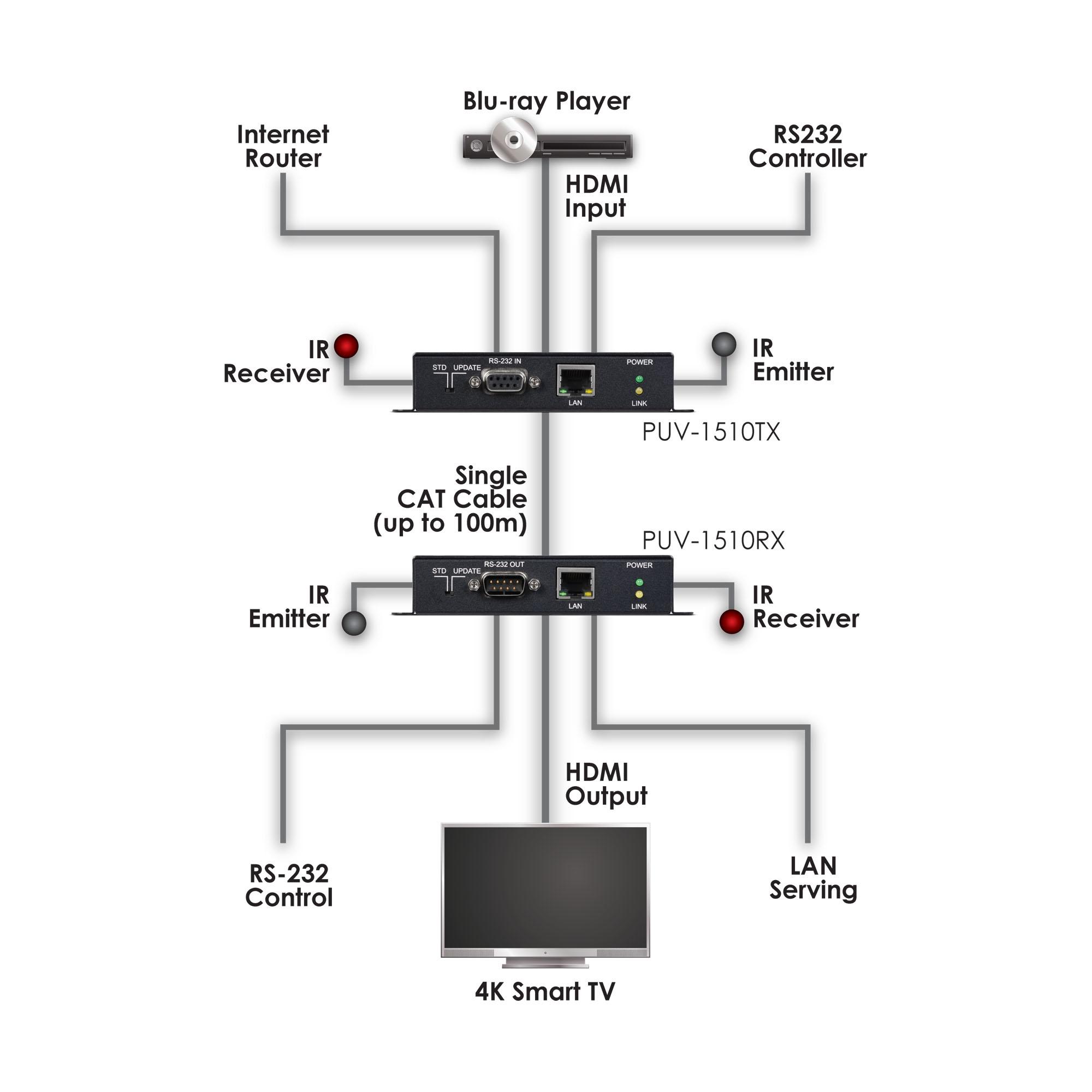

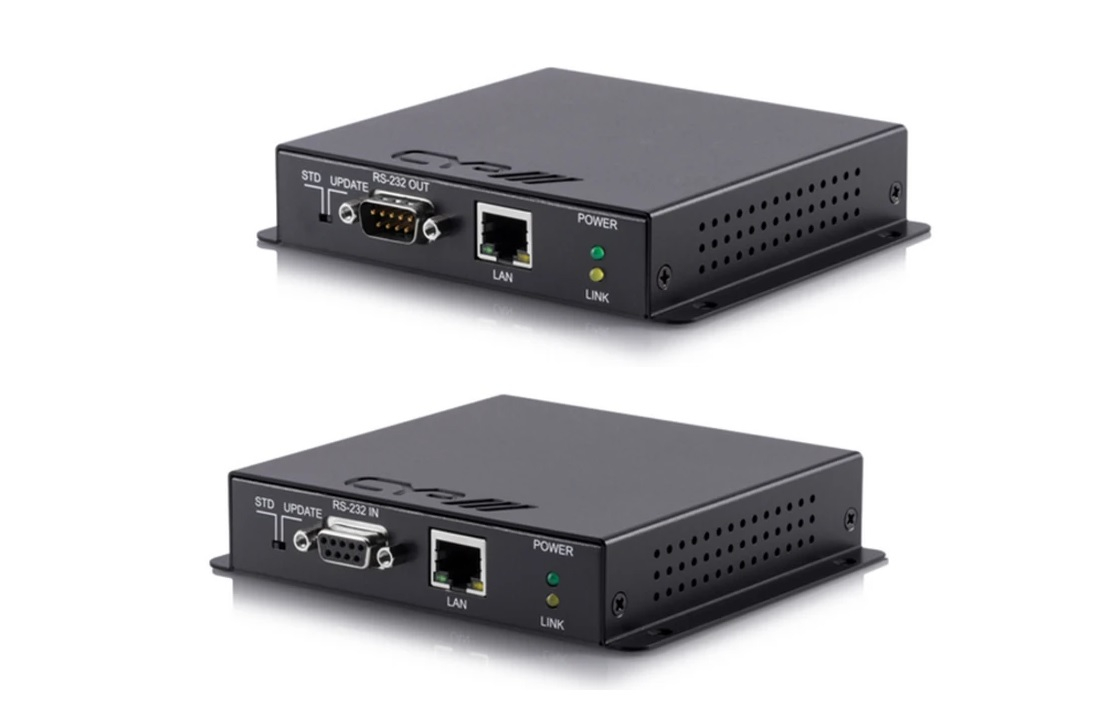

PUV-1510-KIT är ett komplett paket med sändare (PUV-1510TX) samt mottagare (PUV-1510RX) som möjliggör överföring av videoupplösningar upp till 4K UHD, tillsammans med HD-ljud, 2-vägs IR, RS-232, PoH (Power over HDBaseT) och LAN-signaler upp till 100 m via enda CAT6a/7 nätverskabel.
- HDCP2.2 Compliant
- Supports uncompressed video/audio up to 10.2Gbps
- Supports HDCP repeating and CEC functions
- Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- 1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
- 5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
- Supports 3D signals
list

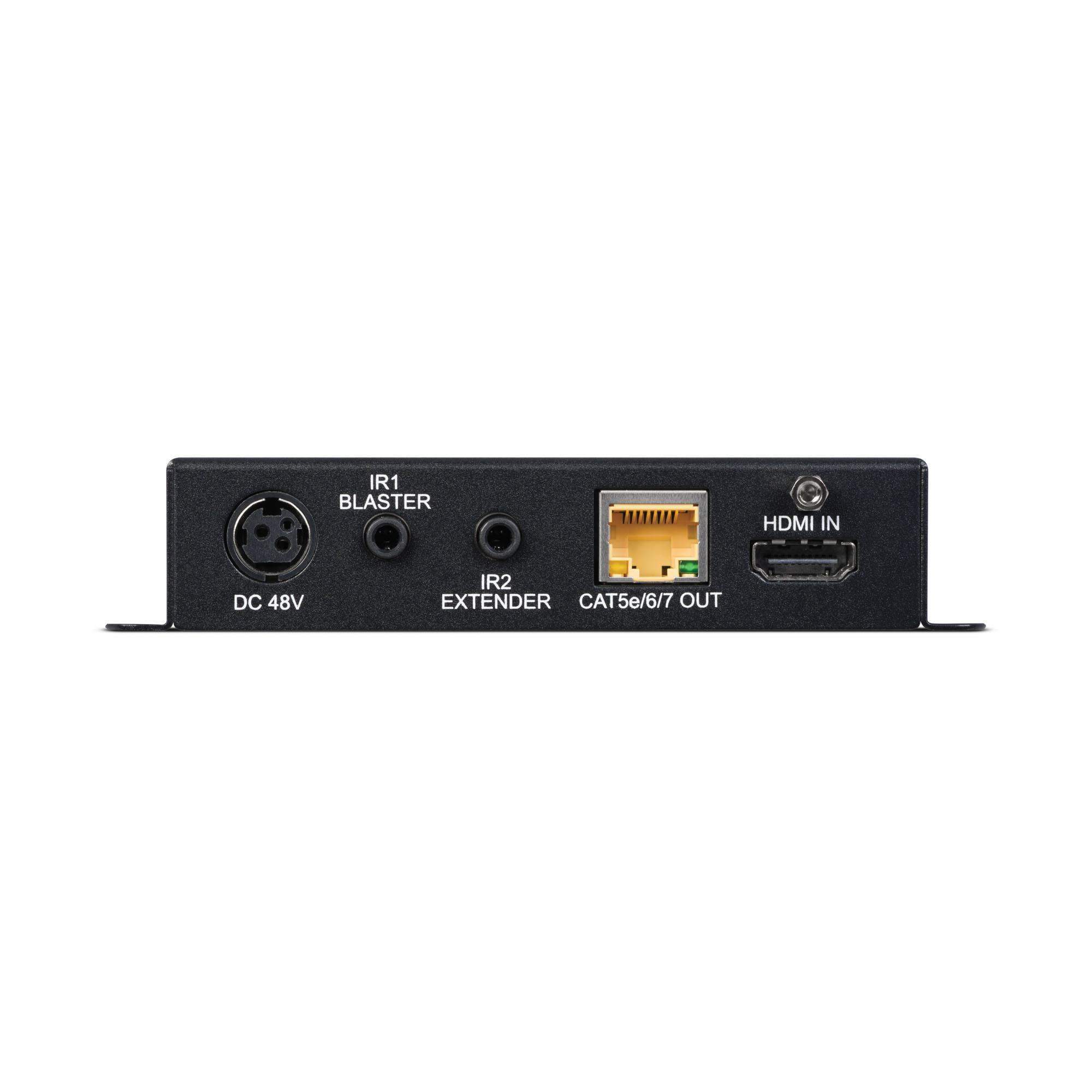

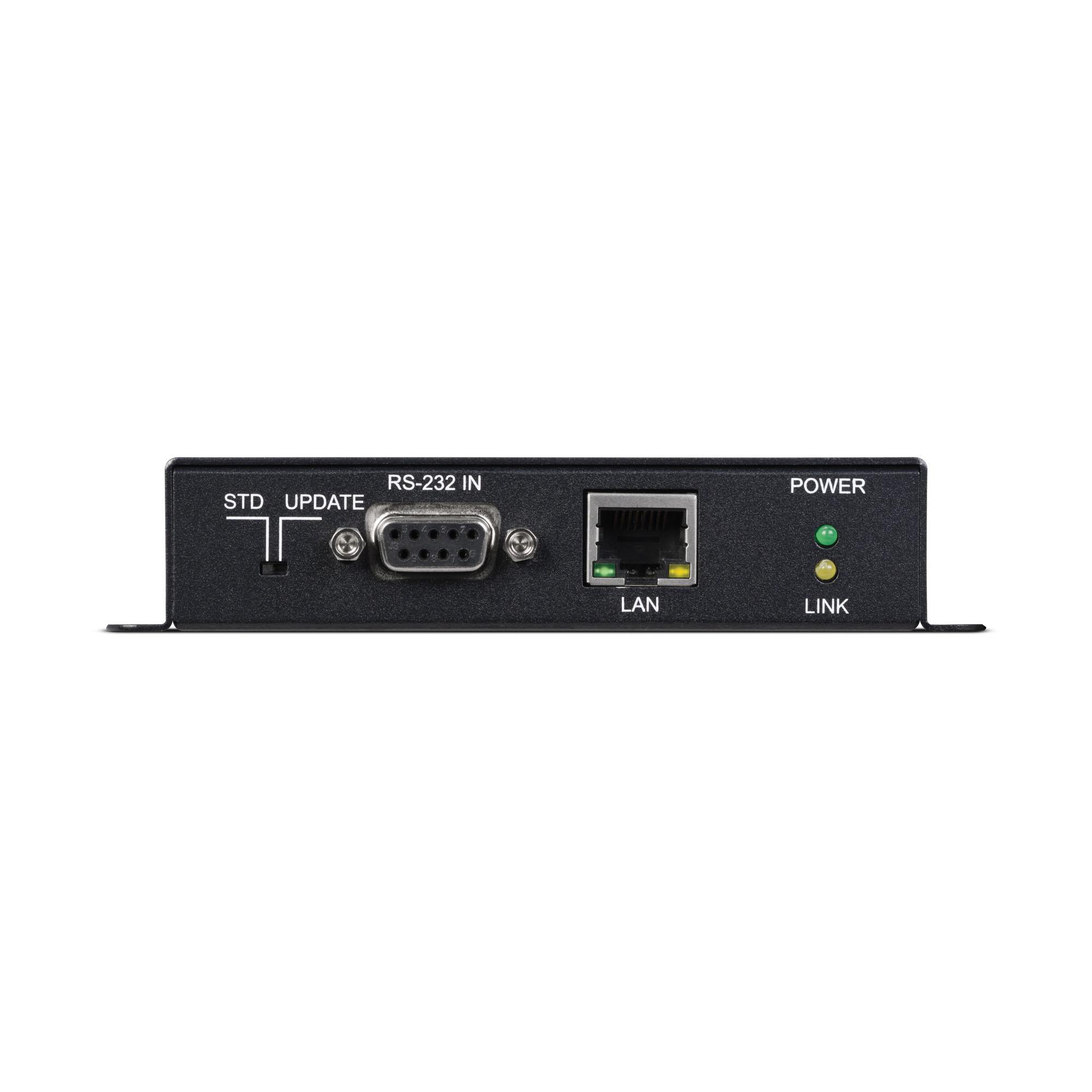

Specifikation| PUV-1510TX | 1x HDMI [1x HDMI Uncompressed AV and Data] |
| 1x 9pin Dsub [1x RS-232 Data] | |
| 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] | |
| 1x RJ45 [1x HDBaseT output HDMI & Propriety Data] | |
| 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] | |
| 1x RJ45 [1x Ethernet (I/O) IP] | |

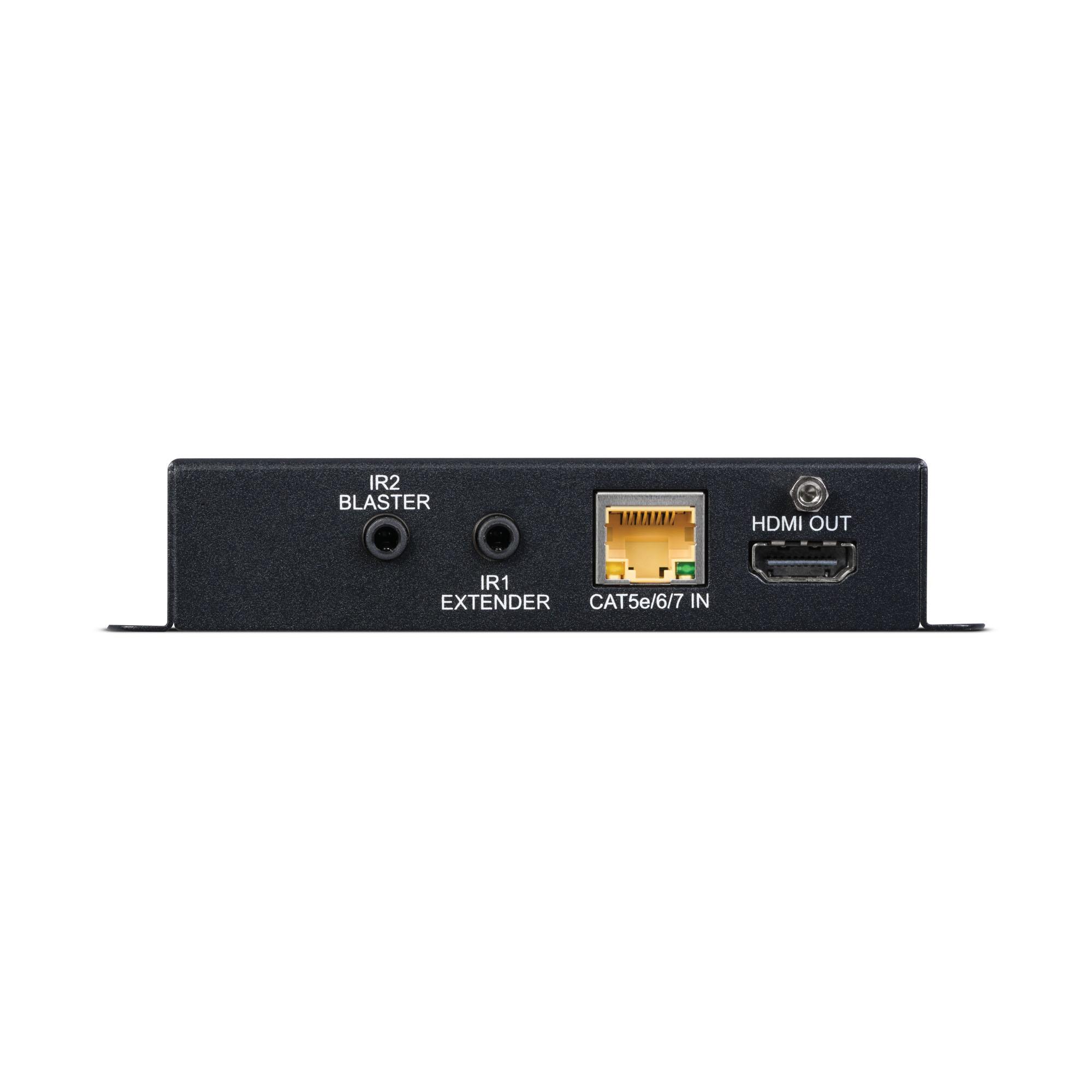

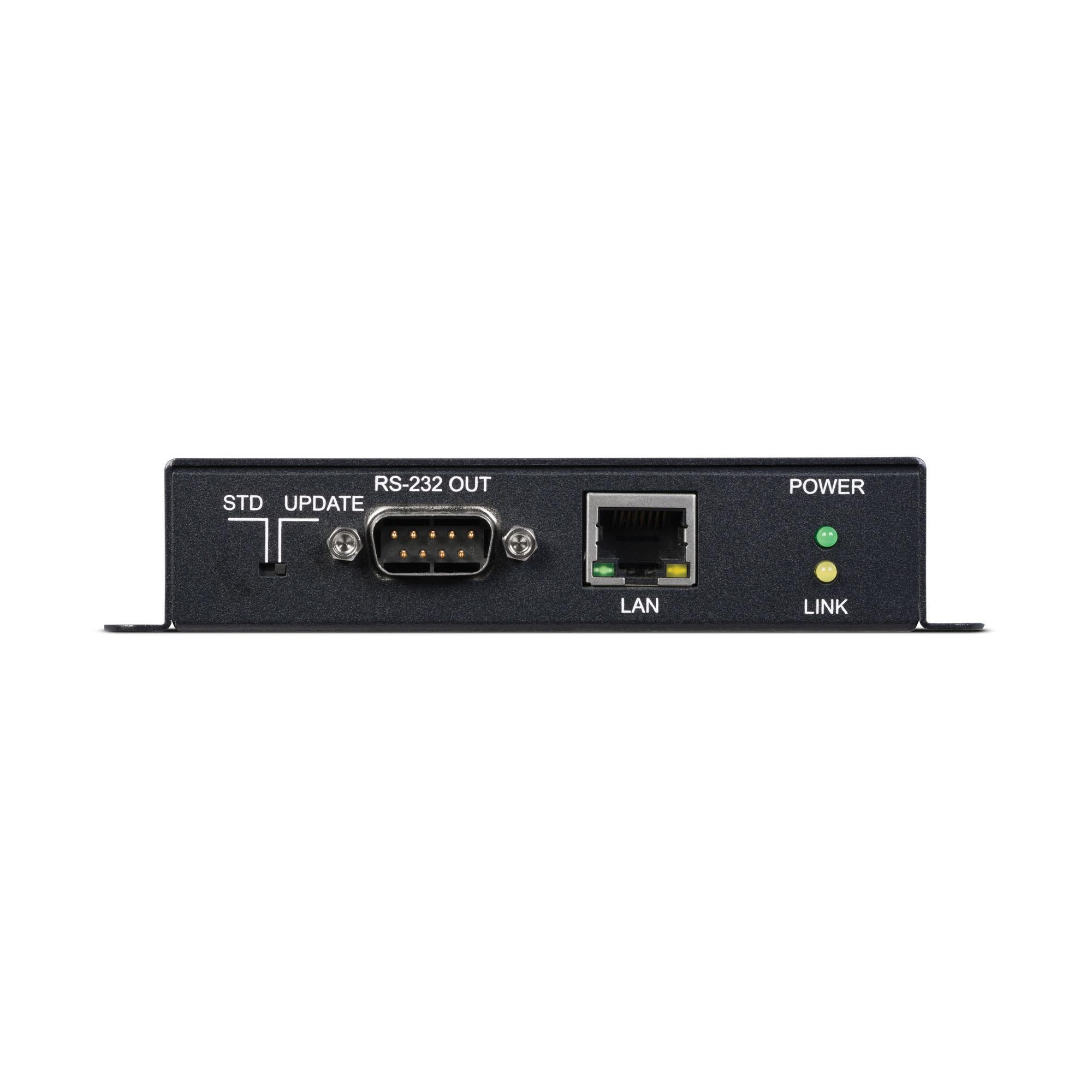

| PUV-1510RX | 1x RJ45 [1x HDBaseT HDMI & Propriety Data] |
| 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] | |
| 1x RJ45 [1x LAN Serving] | |
| 1x HDMI [1x HDMI Uncompressed AV and Data] | |
| 1x 9pin Dsub [1x RS-232 Data] | |
| 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] | |
| PSU | 48V/0.83A / PoH |
| Dimensions | 116mm [W] x 106mm [D] x 27mm [H] |
| Weight | 357g |
