Blustream
DA11XLR
Artikelnr: 1411100066
EAN-nummer: 9340242004178
Produktinformation

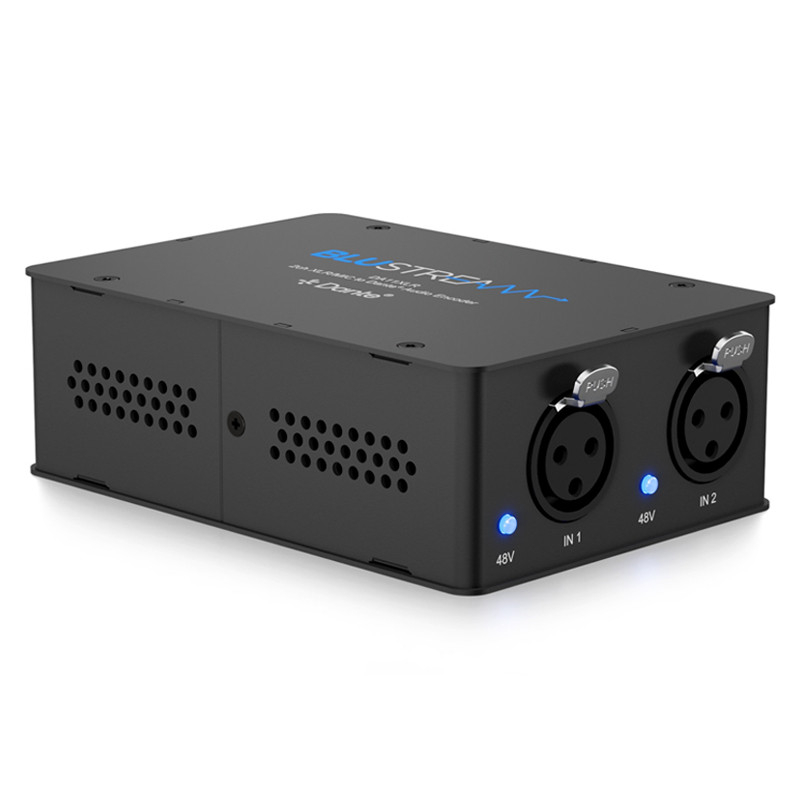

DA11XLR har ingångar för två kanaler analogt ljud via XLR-kontakter till nätverksbaserat Dante-ljud. DA11XLR kan hantera olika signalnivåer så som line eller mik, och har valbar phantommatning för kondensatormikrofoner. Drivs antingen med PoE (Power Over Ethernet), eller med 12V från extern nätdel.
- Dante® network interface for 2 x XLR audio inputs
- Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
- Switchable 48V Phantom power for each MIC XLR input
- Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
- Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
- Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
- Supports AES67 RTP audio transport
- Features Class 0 802.3af PoE for powering of product from any PoE switch
- Local 12V power supply input for when network switch does not support PoE*
- Dimension: 120 x 84 x 40mm (L x W x H)
list
Specifikation

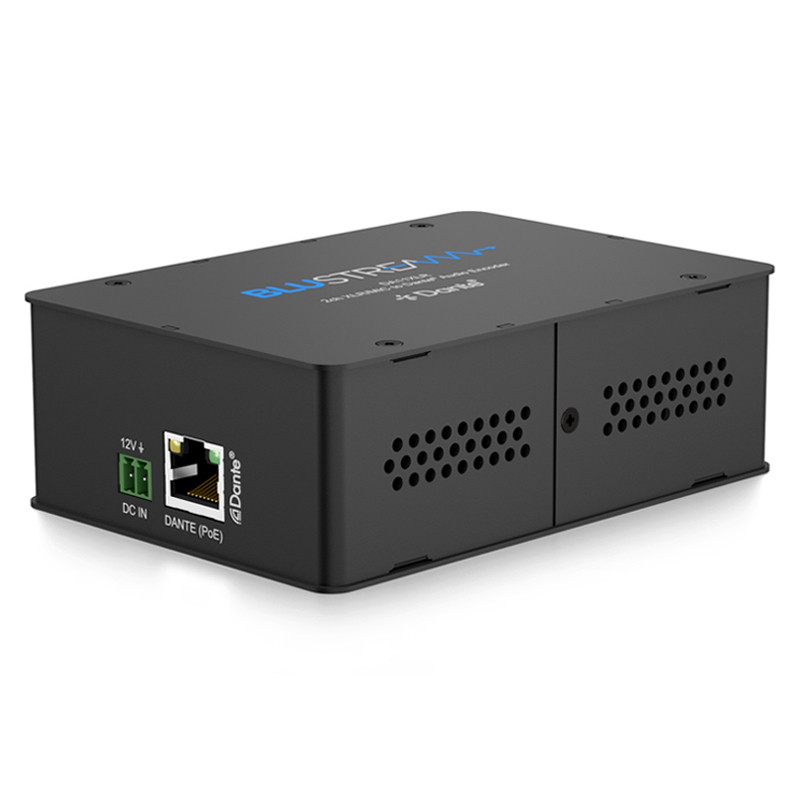

| Kontakt för Dante: | 1 x RJ45, hona (100 Mbps Dante®-nätverk) |
| Kontakter för ljud: | 2 x Analog 3-Pin XLR connector |
| Strömförsörjning: | Klass 1 IEEE 802.3af PoE PD eller via lokal 12V strömförsörjning (tillval) |
| Driftstemperatur: | 0°C till 40°C |
| MÃ¥tt: | 120mm x 84mm x 40mm |
| Vikt: | 300g |
