ProCab
PMI224/1
Artikelnr: 5020680152
EAN-nummer: 5414795046788
Produktinformation

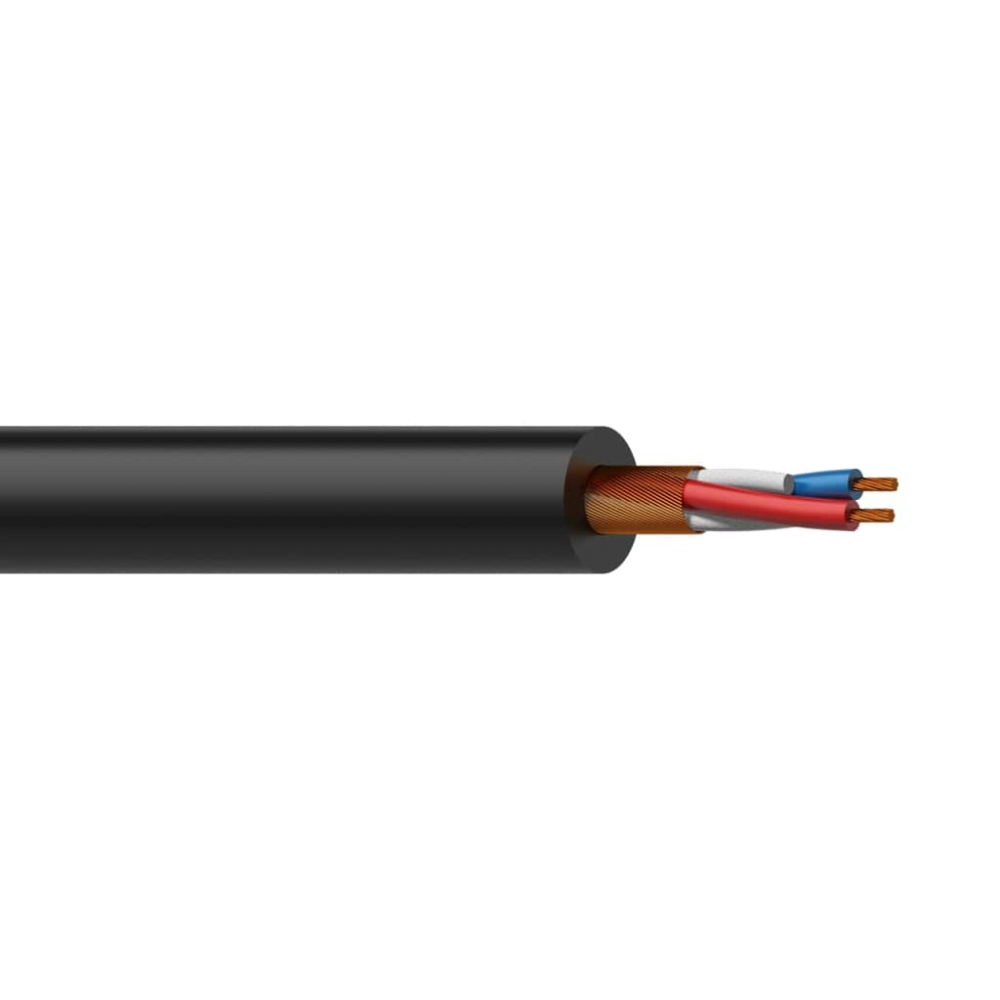

Procab PMI224 är en slitstark och väl skärmad signal/mikrofonkabel i högflexibelt utförande. Är flexibel även vid mycket låga temperaturer.
- 24 AWG thin and dense stranded conductors
- Highflex™ solid & flexible jacket
- 6.2 mm (Ø) outer diameter
- Made in EU
list

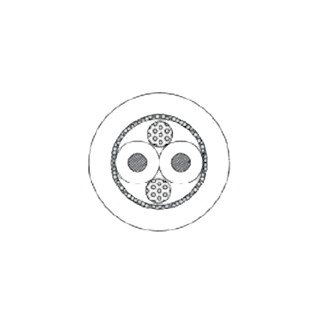

Specifikation| Inner conductor | Insulation | Material | PE 1.5 mm (Ø) |
| Colours | White / Red | ||
| Shielding | Braiding | BC 16 x 5 x 0.10 mm (Ø) (OFC) |
|
| Outer jacket | Material | Highflex PVC 6.2 mm (Ø) | |
| Colours | Black | ||
| Type of cable |
24 AWG Microphone cable |
||
| Inner conductor | Material | BC 12 x 0.15 mm (Ø) (OFC) |
|
| Section | 0.22 mm² | ||
| Filling | Cotton Yarn |
||
| Inner conductor | Number of conductors | 2 | |
| Conductor twisting | Yes |
