CYP
AU-11CA-4K22
Artikelnr: 100000000109
EAN-nummer: 5060067154424
Utgången produkt
Produktinformation

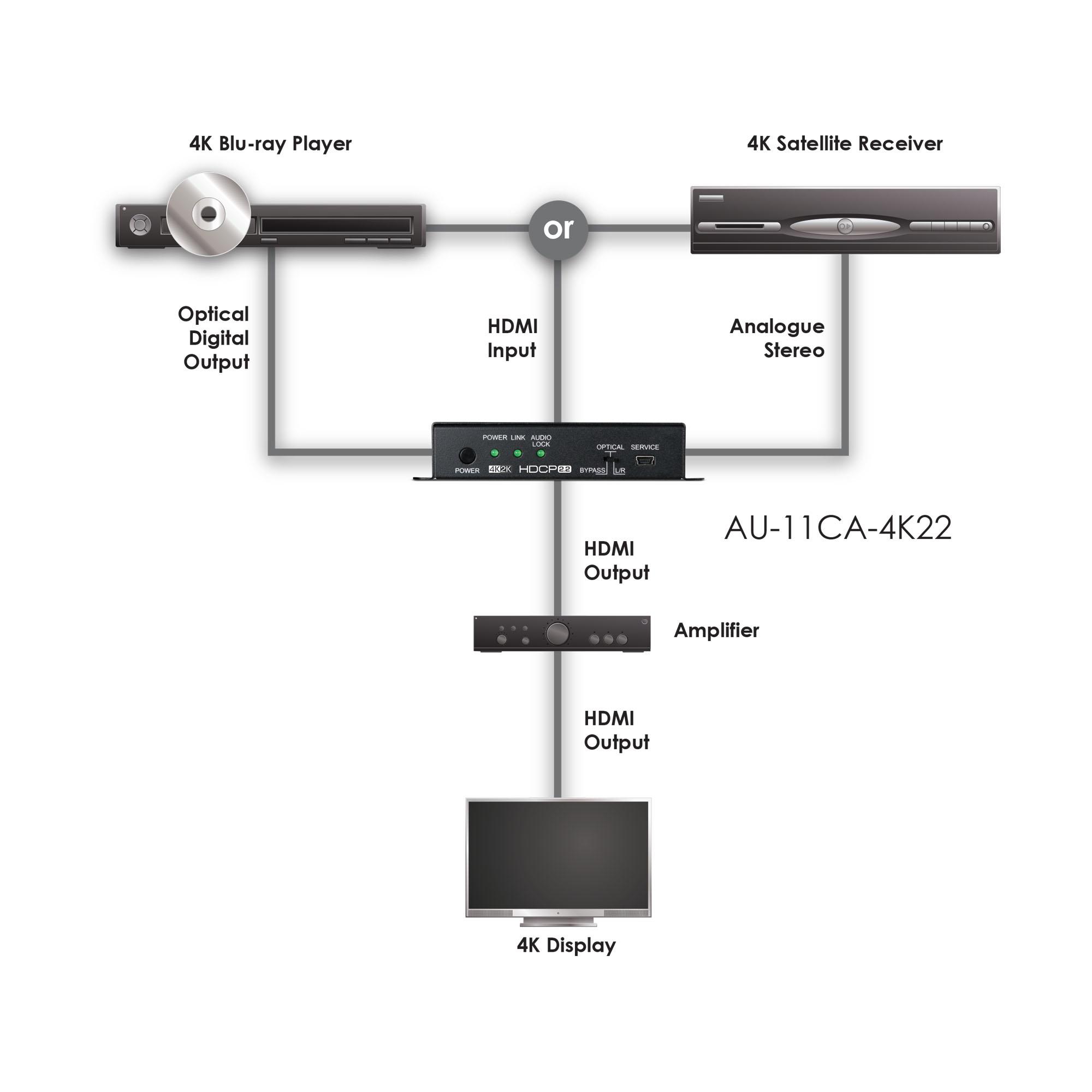

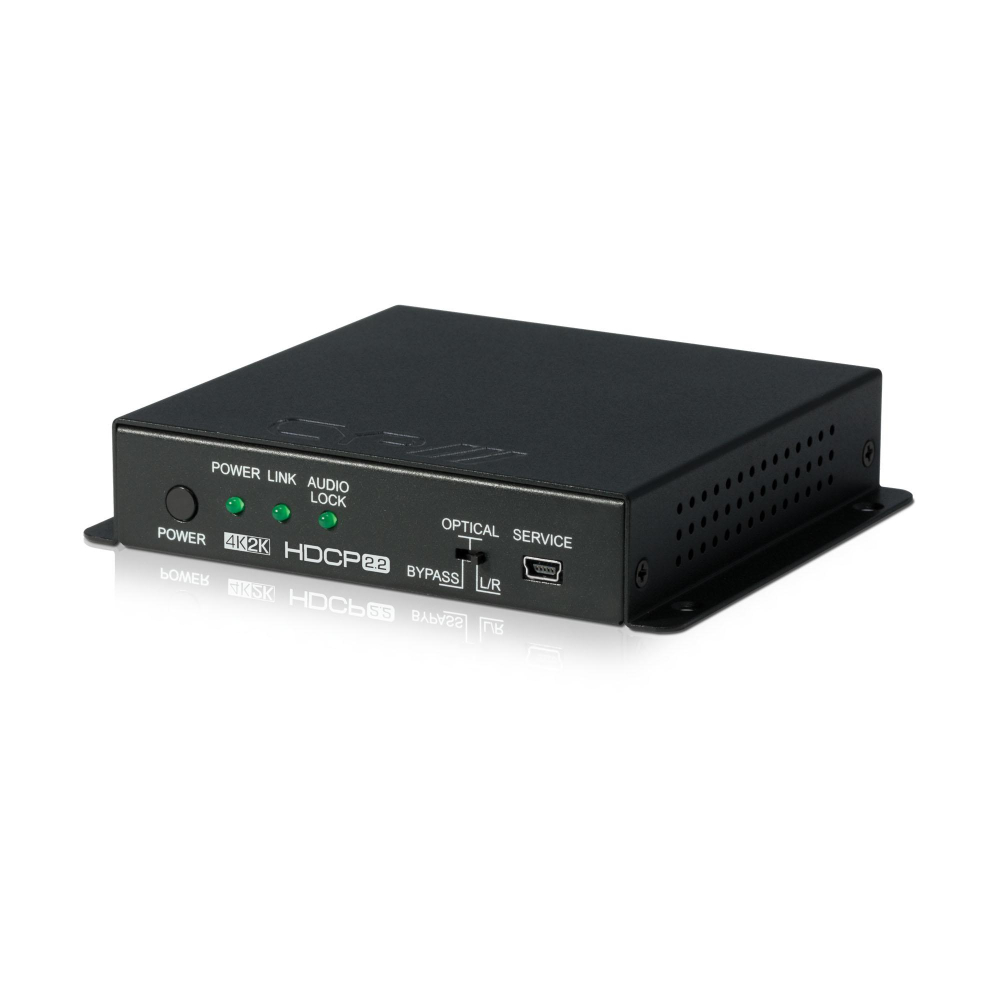

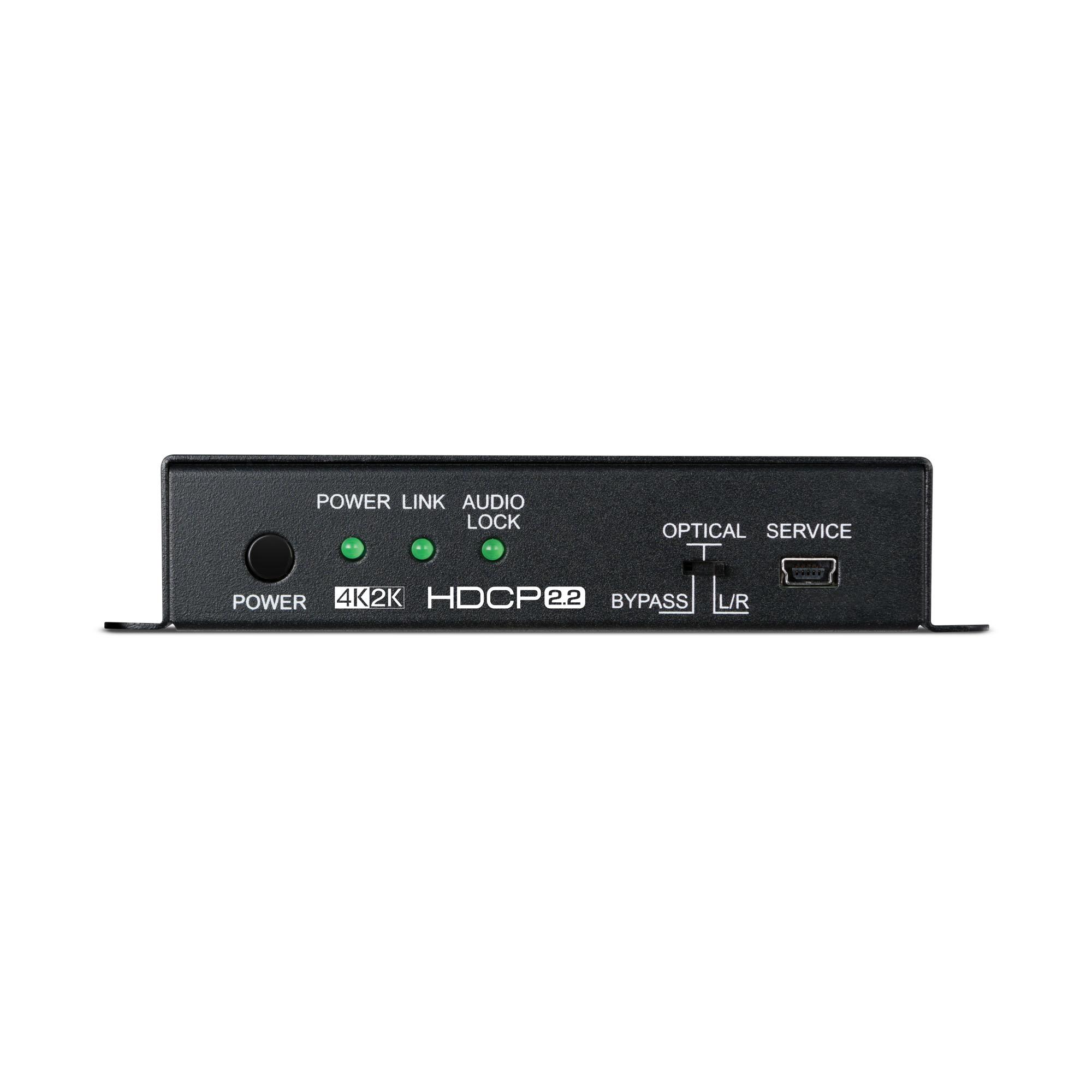

AU-11CA-4K22 är en audio-embedder som låter dig lägga in en extern ljudsignal i en HDMI-signal (embedding).
Man kan mata in både analogt stereo-ljud och digitalt stereo- eller flerkanalsljud via optisk ingång, vilket ger stor flexibilitet.
Förutom sin huvudfunktion som audio-embedder fungerar AU-11CA-4K22 även som en HDMI-repeater. Den förstärker HDMI-signalen så att upp till 10 meters HDMI-kablar kan användas från HDMI-utgången.
Enheten stöder HDMI 2.0, HDCP 2.2 och 4K-upplösningar, vilket gör den lämplig för installationer där ljudsignaler måste integreras i en befintlig 4K UHD-videosignalväg.
- HDMI 2.0, HDCP 2.2 and DVI compliant
- Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30/ 50/60 YUV_444 & 4096x2160@24/25/30/50/60 YUV_444)
- Supports HDMI high resolution digital audio format bypass, LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
- HDMI supports high-bit-rate (HBR) audio
- Select which audio source you require to be embedded onto the HDMI output
- Supports HDMI and Optical S/PDIF audio sample rate up to 192 kHz
- Supports LPCM Stereo, DTS and Dolby Digital via Optical input
- Features CEC bypass
- HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.
list
Specifikation

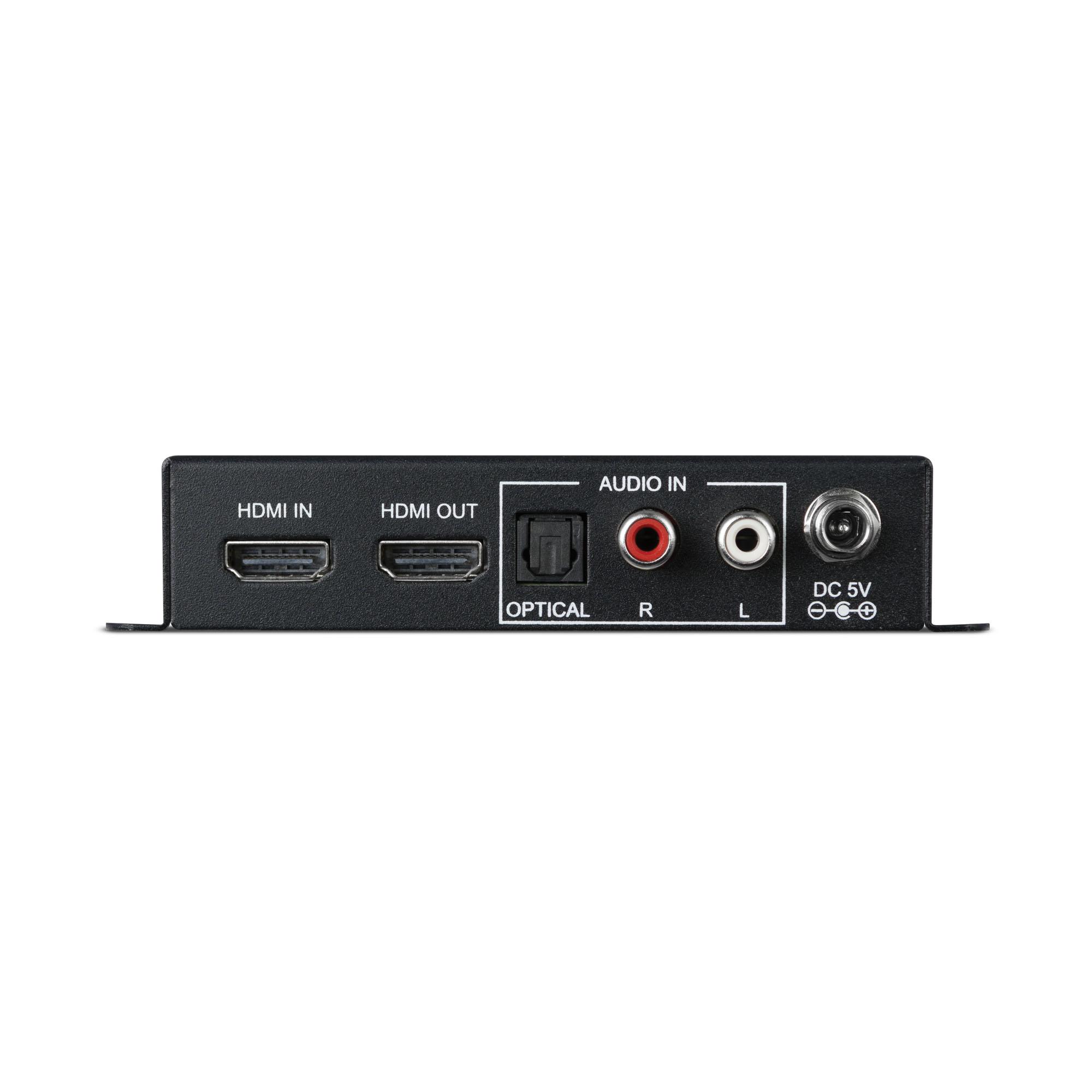

| Inputs | 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data] |
| 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] | |
| 1x Toslink [1x Optical 2 Channel LPCM] | |
| 1x USB 3 Type B [1x Service - Power & Data] | |
| Outputs | 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data] |
| PSU | 5V/2.6A |
| Dimensions | 128mm [W] x 25mm [H] x 108mm [D] |
| Weight | 360g |
