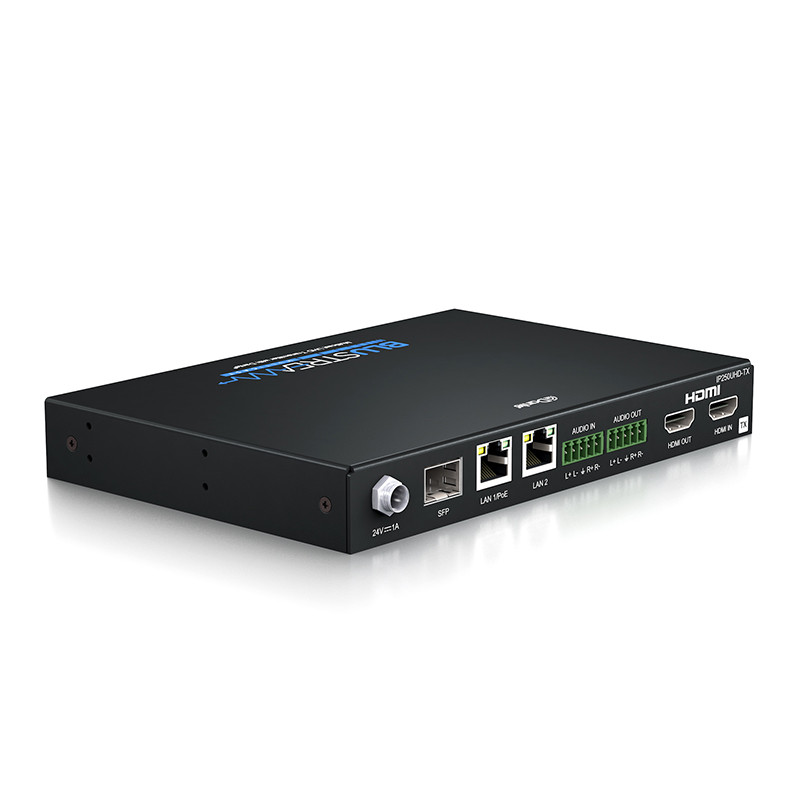

IP250UHD-TX

Blustream IP250UHD-TX är en sändare i Blustream's IP-200-serie inom AV over IP. Utöver att distribuera inkommande bild har IP250UHD-TX även inbyggd Dante-encoder/decoder för att distribuera ljudet in eller ut ur ett Dante-baserat ljudsystem.

IP-200 serien erbjuder nära latency-fri (1 frame) distribution av video i standard 1GB nätverk och stödjer upplösningar upp till 4K UHD @30Hz 4:2:0.

IP250UHD-TX är fullproppad med bra funktioner så som Dante-ljud in och ut, HDMI Loop-out, USB/KVM överföring, 2-vägs IR eller RS-232 kommunikation, PoE, analog audio embedding och analog audio breakout (de-embedding).

Kan även användas som point-to-point system ihop med mottagaren IP200UHD-RX för att skicka 4K bildsignal upp till 100m över nätverkskabel.

• Advanced UHD video over 1Gb Managed Network
• Latency: 1 Frame (16-33ms depending on frame rate) No latency on HDMI Loop out
• Operates as a stand-alone system, or together with existing IP200UHD products
• Virtually unlimited system size
• Extends HDMI and Dante up to a distance of 100m over a single CAT cable
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• Supports up to 4K HDR UHD video sources (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4, 4K @60Hz 4:2:0)
• Supports HDR input @4K 30/25/24Hz
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
• Analogue L/R audio embedding
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• OLED front panel display for advanced system information and manual configuration
• PoE (Power over Ethernet)
• HDCP 2.2 compliant with advanced EDID management
• Local 24V 1A power supply should Ethernet switch not support PoE (not included)
• Features 4 operational modes:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)

• PoE effekt: 8W (typical), 9,2W (max load)
• Mått: 190mm x 95mm x 25mm

INNEHÅLL:
1 x IP250UHD-TX
1 x IRR IR Receiver
1 x IR1 IR Emitter
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
1 x Quick Reference Guide
