CYP

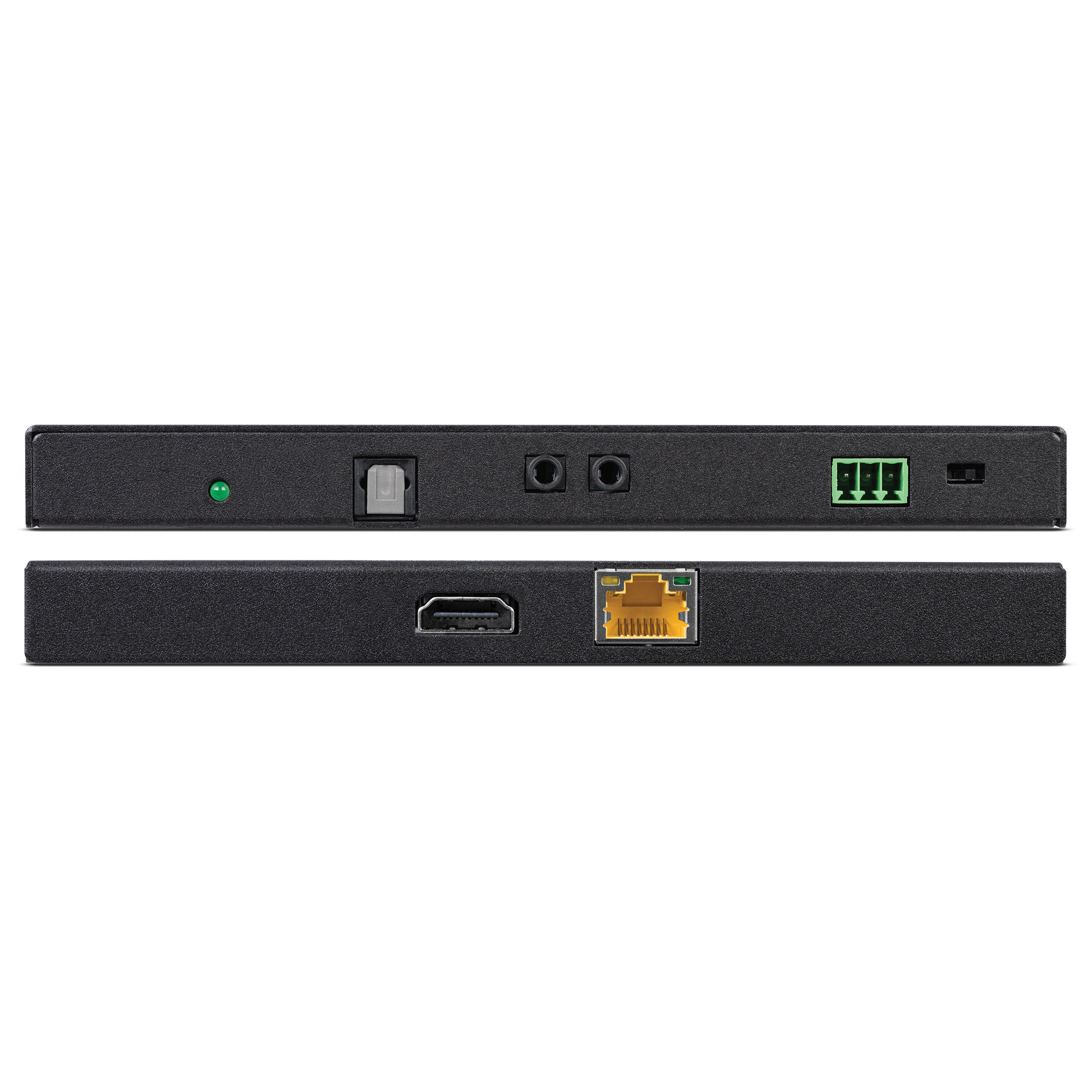

PUV-1230PL-KIT
Artikelnr: 100000000112
EAN-nummer: 5060067155810
Produktinformation
PU-1230PL-KIT möjliggör överföring av video upp till HDMI (4K UHD), tillsammans med HD-ljud, tvåvägs IR, RS-232, PoH (Power over HDBaseT) och OAR (Optical Audio Return) upp till 60 meter. Lösningen ger stabil signalhantering och är anpassad för krävande installationer.
Alla signaler skickas samtidigt över en enda CAT6a eller CAT7 kabel upp till 60 meter, eller upp till 35 meter med CAT5e eller CAT6.
- HDCP2.2 Compliant
- High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s - EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, - Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR) system
- Supports HDCP repeating and CEC functions
list
Specifikation| Inputs | 1x HDMI [1x TX HDMI Uncompressed AV and Data] |
| 1x 3.5mm Stereo mini-jack [1x TX Infra Red Receiver] | |
| 1x Phoenix (3 pin) [1x TX RS-232] | |
| 1x RJ45 [1x RX HDMI & Propriety Data] | |
| 1x 3.5mm Stereo mini-jack [1x RX Infra Red Receiver] | |
| 1x Toslink [1x RX Dolby Digital / DTS / 2 Channel LPCM] | |
| Outputs | 1x HDMI [1x RX HDMI Uncompressed AV and Data] |
| 1x Phoenix (3 pin) [1x RX RS-232] | |
| 1x 3.5mm Stereo mini-jack [1x RX Infra Red Emitter] | |
| 1x RJ45 [1x TX HDMI & Propriety Data] | |
| 1x Toslink [1x TX Dolby Digital / DTS / 2 Channel LPCM] | |
| 1x Phoenix (3 pin) [1x TX Stereo (L/R) Audio Output] | |
| 1x 3.5mm Stereo mini-jack [1x TX Infra Red Emitter] | |
| PSU | 48V/0.83A |
| Dimensions | 163mm [W] x 16mm [H] x 78mm [D] |
| Weight | 400g |
quick_reference
Supportarkivdownload
