CYP
PUV-1530-KIT
Artikelnr: 100000000114
EAN-nummer: 5060067155810
Produktinformation

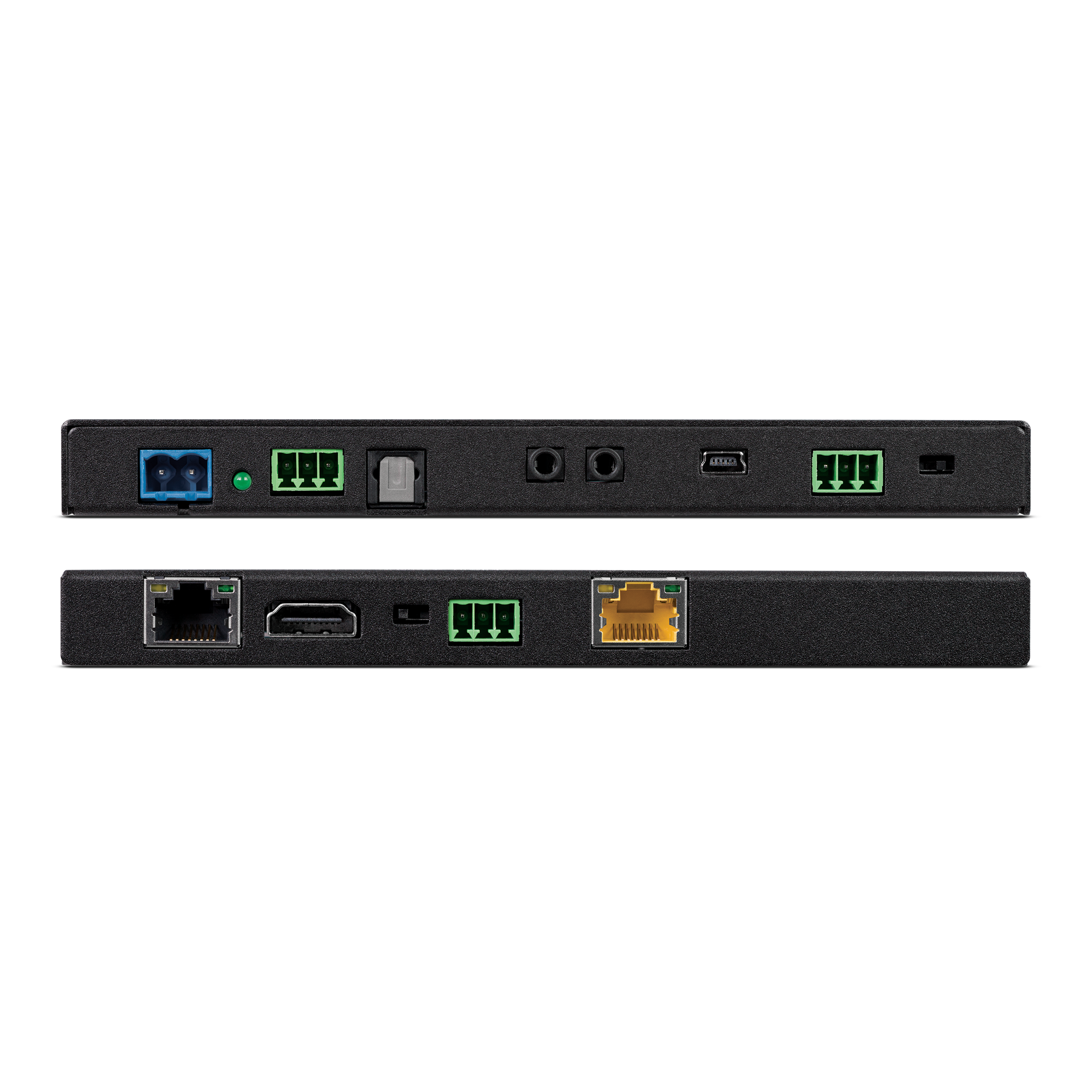

PUV-1530-KIT är ett sändar- och mottagarset som klarar överföring av video upp till 4K UHD tillsammans med HD ljud, tvåvägs IR, RS-232, PoH, OAR och nätverkssignaler på avstånd upp till 100 meter. Setet är utvecklat för stabil och avancerad signalhantering i installationsmiljöer med höga krav.
Alla ljud-, video-, styr- och strömsignaler skickas samtidigt över en enda CAT6a eller CAT7 kabel upp till 100 meter.
- HDCP2.2 Compliant
- HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR)
- Supports optical sampling rate up to 48kHz
- Supports HDCP repeating and CEC functions
- Supports 3D signals
